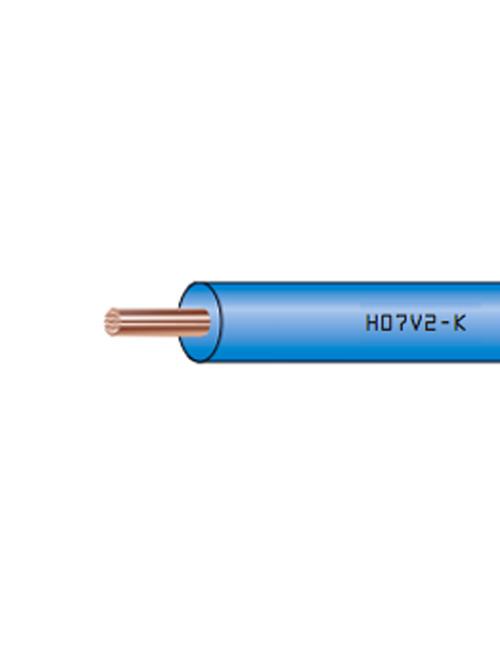

H07V2-K
Standard Reference
| EN 50525-2-31 – CEI 20-107/2-31 | Construction & Specifications |
| 2014/35/UE | Low Voltage Directive |
| 2011/65/CE | RoHS Directive |
| CA01.00637 | IMQ Certificate |
Product Info
Product Description
Description
Flexible single-core cable for fixed installation, for maximum conductor temperature of 90°C.
Conductor
Plain copper flexible wire, class 5
Insulation
PVC compound, TI3 quality
Cores Colour
All single colours and yellow/green two-colour combination allowed
Technical Characteristics
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 90°C
Minimum operating temperature: -10°C
(without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and Installation
For internal wiring and for fixed and protected installation inside lighting equipment and for applications involving functioning at high temperatures. Suitable to be used for installations in lighting or control devices for voltages up to 1000 V a.c. and 750 V d.c. to ground. Not to be used in contact with surfaces having a temperature higher than 85°C. Not suitable for fixed installations in distribution systems when the temperature exceeds 70°C. (ref. CEI 20-40, HD 516)
